When choosing the right turnbuckle for wire rope and cable tensioning, material selection is an important consideration. Two commonly used options are Stainless Steel Turnbuckles and Galvanized Turnbuckles. Both are designed to adjust and maintain tension in compatible wire rope, cable, and rigging systems, but their material, corrosion resistance, appearance, applications, and cost can differ.
A Stainless Steel Turnbuckle is commonly selected for applications where corrosion resistance and a clean metallic appearance are important. A Galvanized Turnbuckle, on the other hand, uses a zinc coating over steel to provide protection against corrosion and is widely used for general outdoor, construction, fencing, and wire rope applications.
Understanding the differences between a Stainless Steel Turnbuckle and Galvanized Turnbuckle can help buyers select the appropriate hardware for their project requirements.
What Is a Stainless Steel Turnbuckle?
A Stainless Steel Turnbuckle is an adjustable tensioning component used with compatible wire rope, cable, and rigging systems. It normally consists of a threaded body and end fittings that allow the overall length and tension of a cable assembly to be adjusted.
The central body can be rotated to increase or decrease tension. Depending on the design, turnbuckles can have eye, hook, jaw, or other end configurations.
A Stainless Steel Turnbuckle with Eye Hook is particularly useful when a secure connection is required between the turnbuckle and compatible cable, wire rope, or attachment hardware.
Stainless steel is known for its resistance to corrosion and its clean metallic appearance. Because of these characteristics, stainless steel turnbuckles are frequently considered for outdoor, architectural, marine, railing, and other environments where exposure to moisture may be a concern.
For buyers searching for stainless steel turnbuckle online, it is important to check the size, thread configuration, end fitting, material specification, and intended application before purchasing.

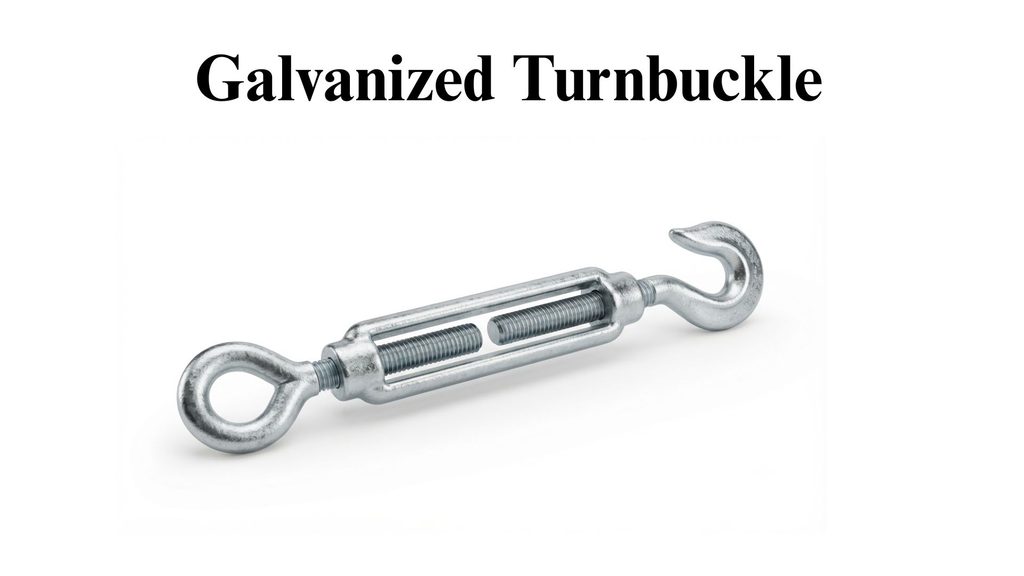

What Is a Galvanized Turnbuckle?
A Galvanized Turnbuckle is a steel tensioning component protected by a zinc coating. The zinc coating provides a barrier against environmental exposure and helps protect the underlying steel from corrosion.
Galvanized turnbuckles are commonly used in applications involving wire rope and cable tensioning. They can be found in construction, fencing, landscaping, outdoor structures, general rigging, and other applications where galvanized steel hardware is suitable.
The main advantage of a galvanized turnbuckle is that it can provide a practical combination of steel strength and corrosion protection while generally being a more economical option than stainless steel.
When purchasing a Galvanized Turnbuckle online, buyers should check the coating, dimensions, thread size, end fitting, and compatibility with the wire rope or cable being used.

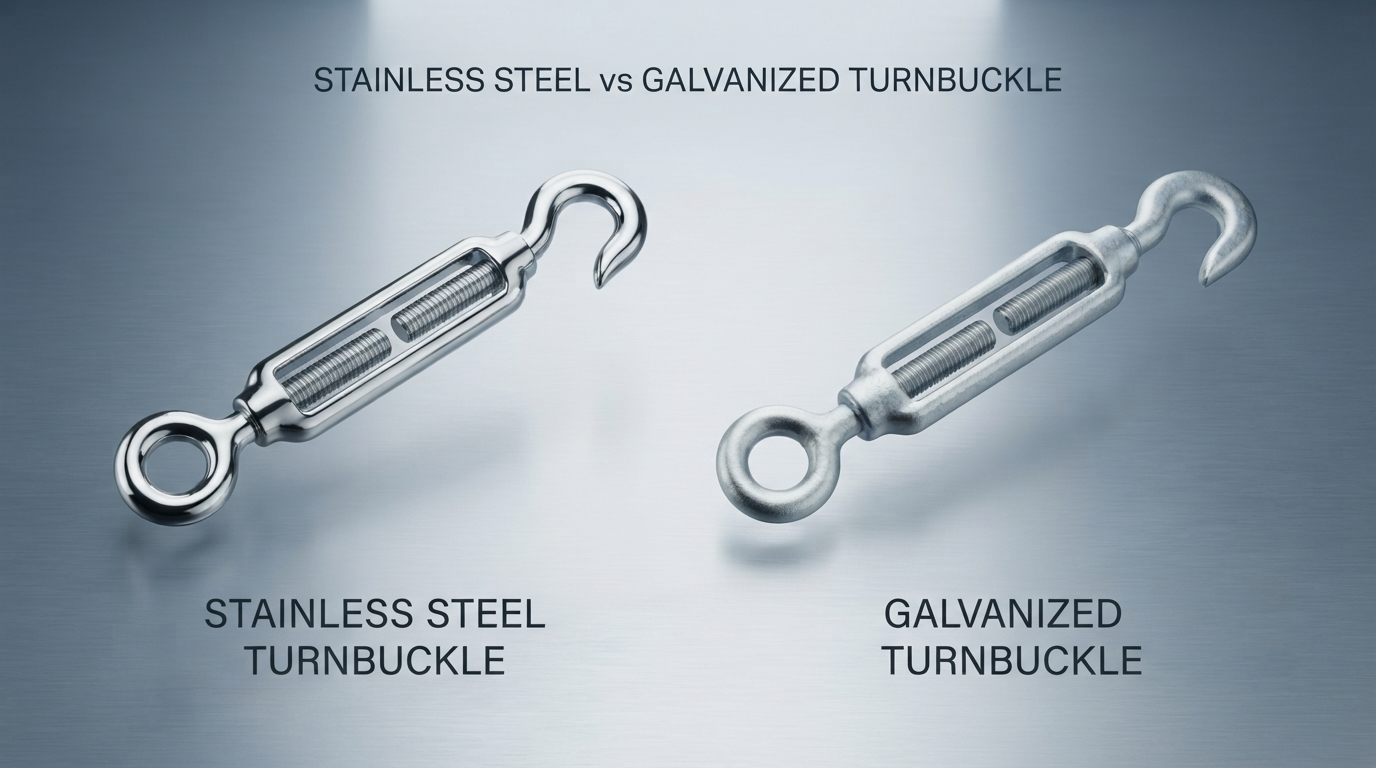

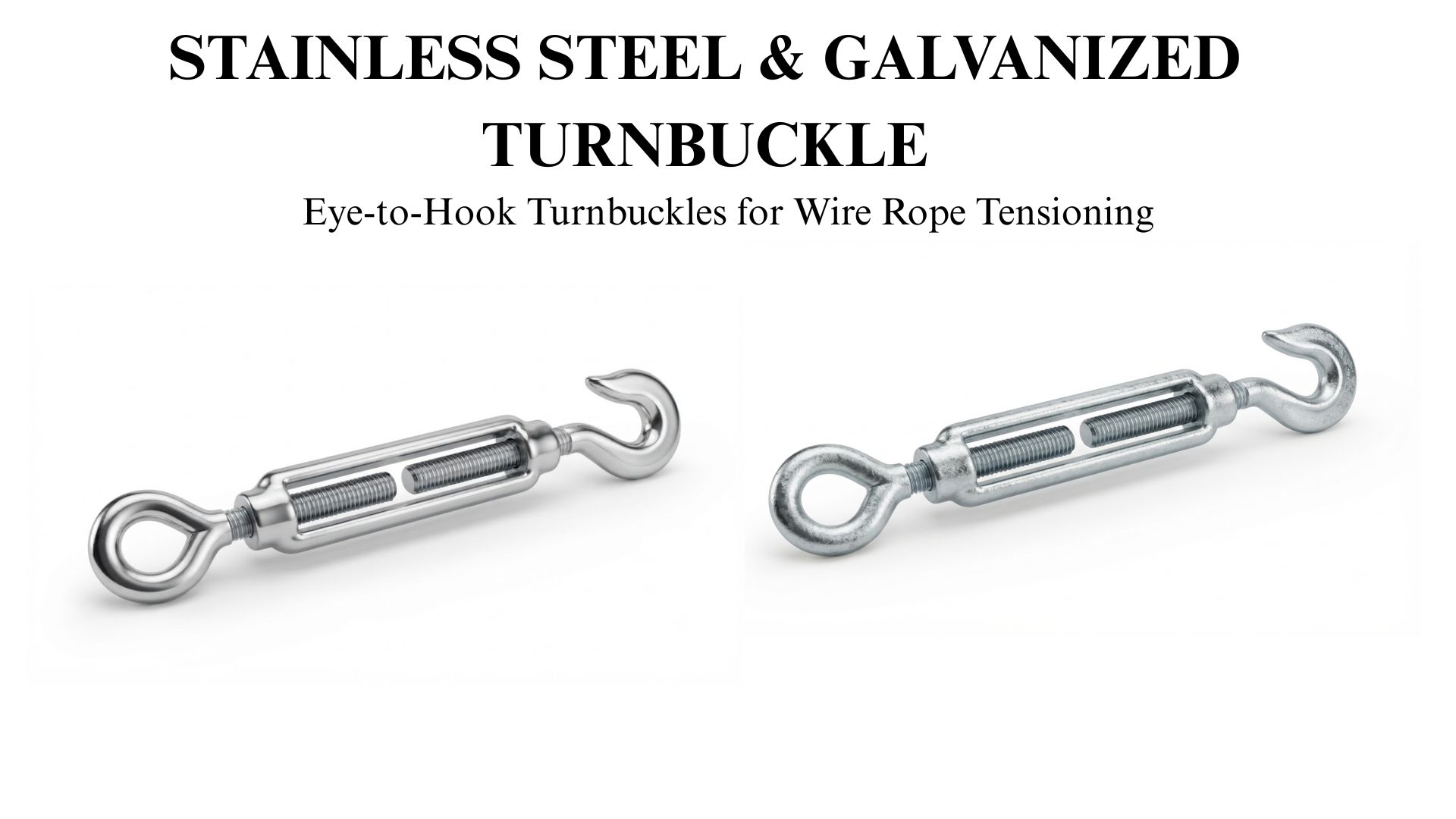

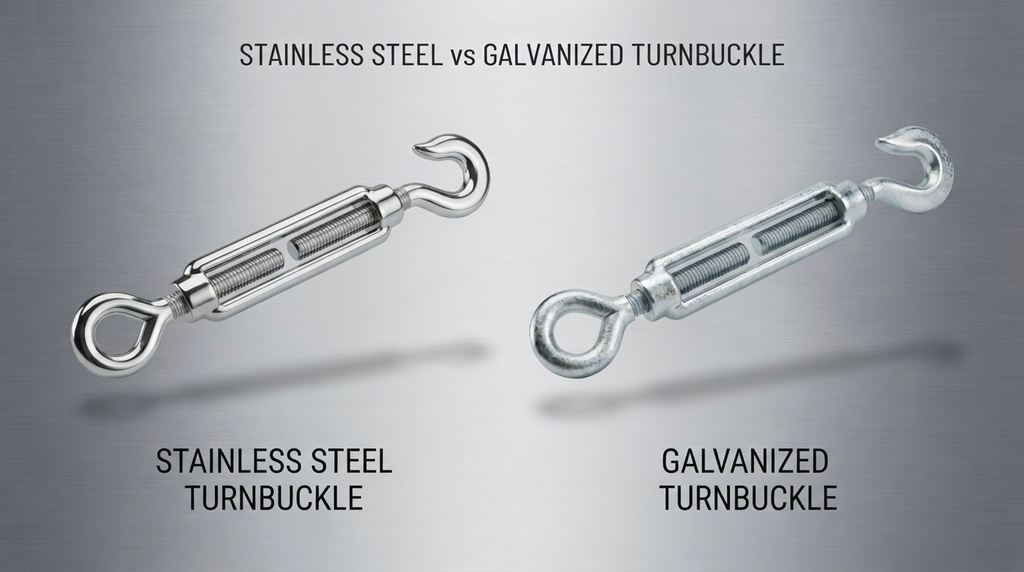

Stainless Steel Turnbuckle vs Galvanized Turnbuckle
The main difference between a Stainless Steel Turnbuckle and Galvanized Turnbuckle is the material and the way each provides protection against corrosion.
Stainless steel has corrosion-resistant properties throughout the material, while galvanized steel relies on a zinc coating to protect the steel underneath.
This difference can influence the selection of turnbuckle for a particular application.

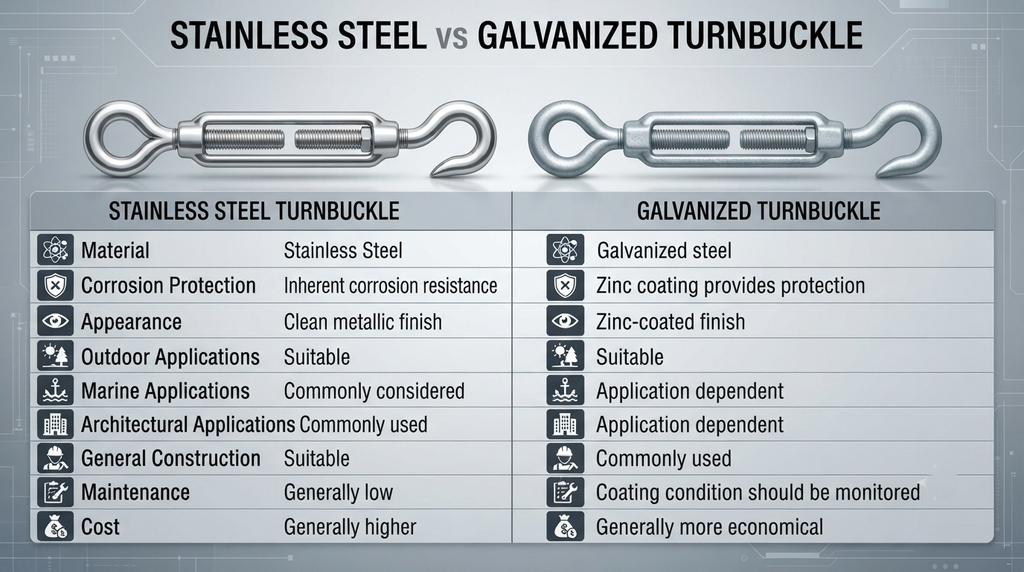

| Feature | Stainless Steel Turnbuckle | Galvanized Turnbuckle |
|---|---|---|
| Material | Stainless steel | Galvanized steel |
| Corrosion Protection | Inherent corrosion resistance | Zinc coating provides protection |
| Appearance | Clean metallic finish | Zinc-coated finish |
| Outdoor Applications | Suitable | Suitable |
| Marine Applications | Commonly considered | Application dependent |
| Architectural Applications | Commonly used | Application dependent |
| General Construction | Suitable | Commonly used |
| Maintenance | Generally low | Coating condition should be monitored |
| Cost | Generally higher | Generally more economical |
The appropriate option depends on the environment, design requirements, compatibility, required dimensions, and project budget.
Corrosion Resistance: Stainless Steel vs Galvanized
Corrosion resistance is one of the most important factors when selecting a turnbuckle.
A Stainless Steel Turnbuckle is often selected for environments where moisture and corrosion resistance are important. Stainless steel provides its corrosion resistance through the properties of the material itself.
A Galvanized Turnbuckle receives corrosion protection from its zinc coating. The zinc layer helps protect the steel from exposure to environmental conditions. However, if the coating becomes damaged or worn, the underlying steel can become exposed.
For outdoor applications, both options may be appropriate depending on the environment and product specifications.
For marine or highly corrosive environments, buyers should carefully consider the stainless steel grade, galvanized coating, environmental exposure, and manufacturer specifications rather than selecting a material based only on its name.
Strength and Tension Adjustment
Both stainless steel and galvanized turnbuckles are designed to provide adjustable tension in compatible systems.
The threaded barrel allows the user to make controlled adjustments to the length of the assembly. This makes turnbuckles useful when a wire rope or cable needs to be tensioned after installation.
However, the load capacity of a turnbuckle should never be assumed from material type alone.
Buyers should consider:
- Turnbuckle size
- Thread diameter
- Construction
- End fitting design
- Manufacturer specifications
- Wire rope diameter
- Application requirements
- Working load requirements
Always select hardware according to the specifications provided for the particular product and application.
Buy Stainless Steel Turnbuckle Online

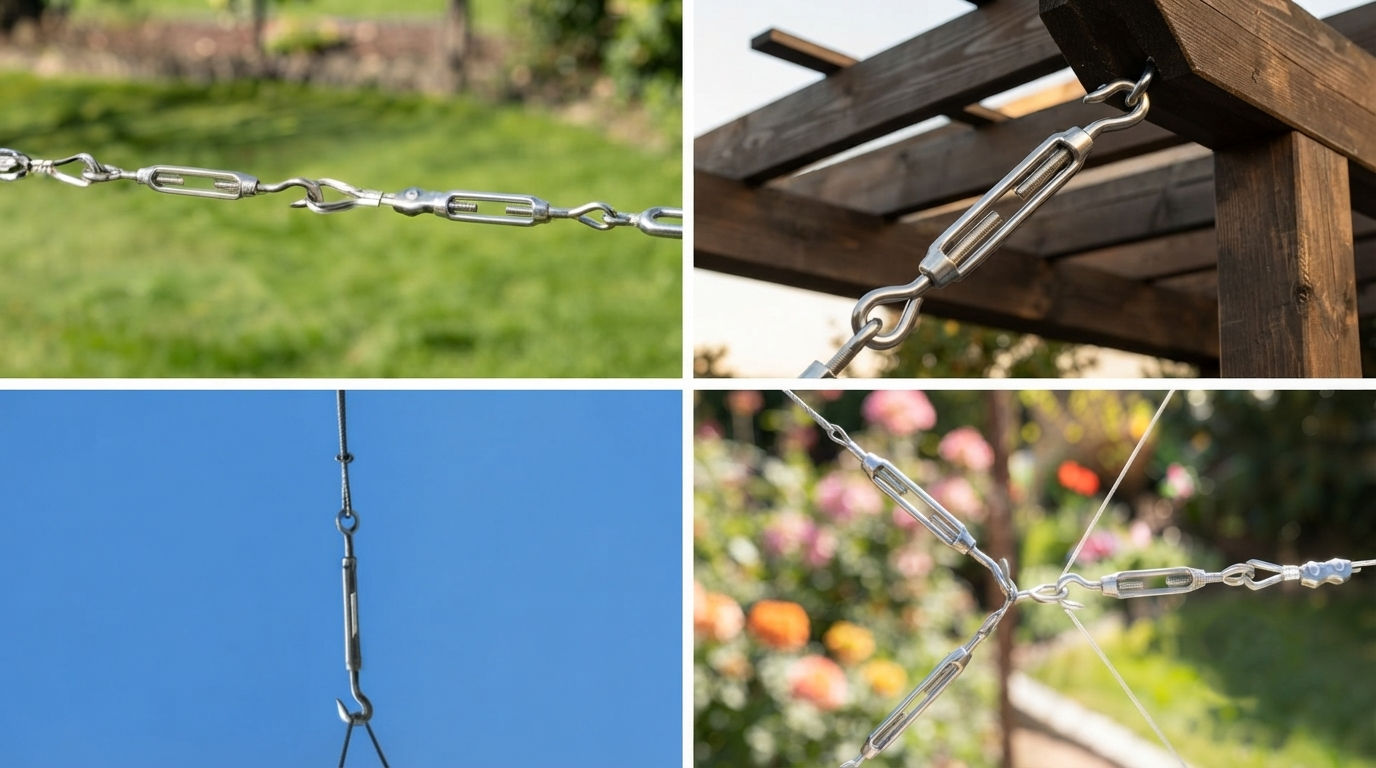

Applications of Stainless Steel Turnbuckle & Galvanized Turnbuckles
Applications of Stainless Steel Turnbuckles
- Cable Railing Systems
- Architectural Cable Structures
- Marine Applications
- Outdoor Structures
- Shade & Canopy Systems
- Wire Rope Tensioning
- Fencing & Landscaping
Applications of Galvanized Turnbuckles
- Construction Applications
- Fencing Systems
- Outdoor Structures
- Landscaping & Garden Structures
- Wire Rope Tensioning
- General Rigging Applications
- Cable Support Systems
Buy Turnbuckle from the website
B2B and Bulk Ordering
Turnbuckles are often purchased for construction projects, railing installations, fabrication work, marine-related projects, fencing, and other commercial applications.
Steelwirerope supports B2B and bulk ordering requirements for suitable stainless steel and galvanized rigging hardware.
Businesses can contact the team with details such as:
- Required product type
- Material
- Size
- Quantity
- Application
- Delivery requirements
For large projects, it is useful to confirm product specifications and compatibility before placing a bulk order.
Why Choose Steelwirerope?
Steelwirerope provides wire rope and rigging hardware for different industrial, commercial, architectural, and outdoor applications.
Our product range includes Stainless Steel Turnbuckles, Galvanized Turnbuckles, wire rope, U-clamps, shackles, cable fittings, O-rings, and other hardware.
Whether you need a Stainless Steel Turnbuckle with Eye Hook for a cable railing or architectural project, or a Galvanized Turnbuckle for a suitable outdoor or construction application, reviewing material, size, configuration, and application requirements can help you identify the appropriate product.
Steelwirerope also provides options for online purchasing and B2B requirements, making it easier for businesses and project buyers to source wire rope and rigging components.
Frequently Asked Questions
1. What is a Stainless Steel Turnbuckle?
A Stainless Steel Turnbuckle is an adjustable rigging component used to tension compatible wire rope, cable, and other tensioning systems.
2. What is a Galvanized Turnbuckle?
A Galvanized Turnbuckle is a steel turnbuckle protected with a zinc coating and used for compatible wire rope, cable, and general tensioning applications.
3. What is the difference between SS and GI Turnbuckle?
The primary difference is the material and corrosion protection method. Stainless steel provides corrosion resistance through its material properties, while galvanized steel uses a zinc coating over steel.
4. Can a Stainless Steel Turnbuckle be used for wire rope?
Yes, a suitable Stainless Steel Turnbuckle can be used with compatible wire rope and cable systems for adjustable tensioning.
5. Can a Galvanized Turnbuckle be used outdoors?
Galvanized Turnbuckles can be suitable for many outdoor applications where their zinc coating provides the required corrosion protection.
6. Which sizes are available in Stainless Steel Turnbuckles?
Steelwirerope offers Stainless Steel Turnbuckles in 4MM, 6MM, 8MM, 10MM, and 12MM sizes.
7. Where can I buy a Stainless Steel Turnbuckle online?
You can purchase suitable Stainless Steel Turnbuckles through the Steelwirerope website by selecting the required size and reviewing the product specifications.
8. Where can I buy a Galvanized Turnbuckle?
Galvanized Turnbuckles can be purchased online through Steelwirerope, subject to the available product sizes and configurations.
Conclusion
Both Stainless Steel Turnbuckles and Galvanized Turnbuckles are useful tensioning components for compatible wire rope and cable systems. The main differences relate to their material, corrosion protection, appearance, environmental suitability, and cost.
A Stainless Steel Turnbuckle can be considered where corrosion resistance and appearance are important, while a Galvanized Turnbuckle can be suitable for many general construction, fencing, outdoor, and cable tensioning applications.
Before purchasing, always check the material, size, thread configuration, end fitting, wire rope compatibility, environmental conditions, and product specifications.
For stainless steel and galvanized wire rope hardware, customers can explore the available products from Steelwirerope and select the configuration that matches their project requirements.
