When working with wire ropes, cables, railing systems, or industrial tensioning assemblies, maintaining the right amount of tension is essential. A loose cable can affect the stability and appearance of an installation, while excessive tension can place unnecessary stress on the cable and connecting hardware.
A stainless steel turnbuckle provides a practical way to adjust and maintain tension in compatible wire rope and cable assemblies. Also known as an SS rigging screw, wire rope tensioner, cable tensioner, or wire rope adjuster, this hardware component uses threaded ends and a central body to increase or decrease tension.
Stainless steel turnbuckles with eye hooks are commonly considered for industrial wire rope tensioning, cable railing, architectural cable systems, marine applications, construction projects, outdoor structures, and general rigging applications.
In this guide, we will explain what a stainless steel turnbuckle is, how an SS rigging screw works, its features and applications, how to select the correct size, and what to check before purchasing.
What Is a Stainless Steel Turnbuckle?
A stainless steel turnbuckle is a mechanical tensioning device used to adjust the tension of wire ropes, cables, rods, and similar assemblies.
It generally consists of a central threaded body and two threaded end fittings. Depending on the design, the ends may be manufactured as eyes, hooks, jaws, forks, or other connection types.
When the central body is rotated, the threaded ends move in relation to the body. This allows the connected cable or wire rope to be tightened or loosened.
For applications exposed to moisture, humidity, or outdoor conditions, stainless steel is often selected because of its corrosion-resistant properties.
A stainless steel turnbuckle can therefore be a useful component when a cable system requires adjustable tension and a durable connection point.
Common Names for This Product
Depending on the supplier or industry, you may see the same type of hardware described using different terms, such as:
- Stainless steel turnbuckle
- SS turnbuckle
- Stainless steel rigging screw
- SS rigging screw
- Wire rope tensioner
- Cable tensioner
- Wire rope adjuster
- Stainless steel cable tensioner
- Eye hook turnbuckle
- Stainless steel eye turnbuckle
- Wire rope tensioning hardware
- Cable rigging hardware
The exact construction, dimensions, material grade, and load capacity can vary between products, so specifications should always be checked before ordering.

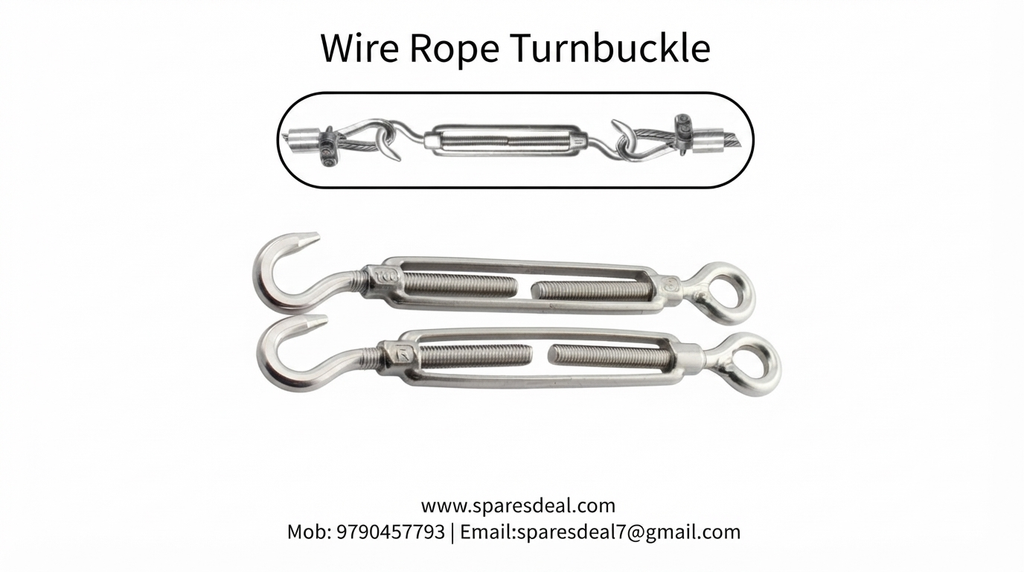

How Does an SS Rigging Screw Work?
The working principle of an SS rigging screw is relatively simple.
The central body contains internal threads that connect with threaded fittings on each end. The two ends are designed so that rotating the body changes the distance between the connection points.
For example, consider a wire rope installed between two fixed points. If the cable requires additional tension, a suitable turnbuckle can be incorporated into the assembly. Rotating the turnbuckle body allows the user to make an adjustment.
This makes a wire rope turnbuckle useful where the tension of a cable needs to be adjusted after installation.
The amount of adjustment available depends on the design and size of the particular turnbuckle. Therefore, it is important to check the product’s adjustment range before purchasing.

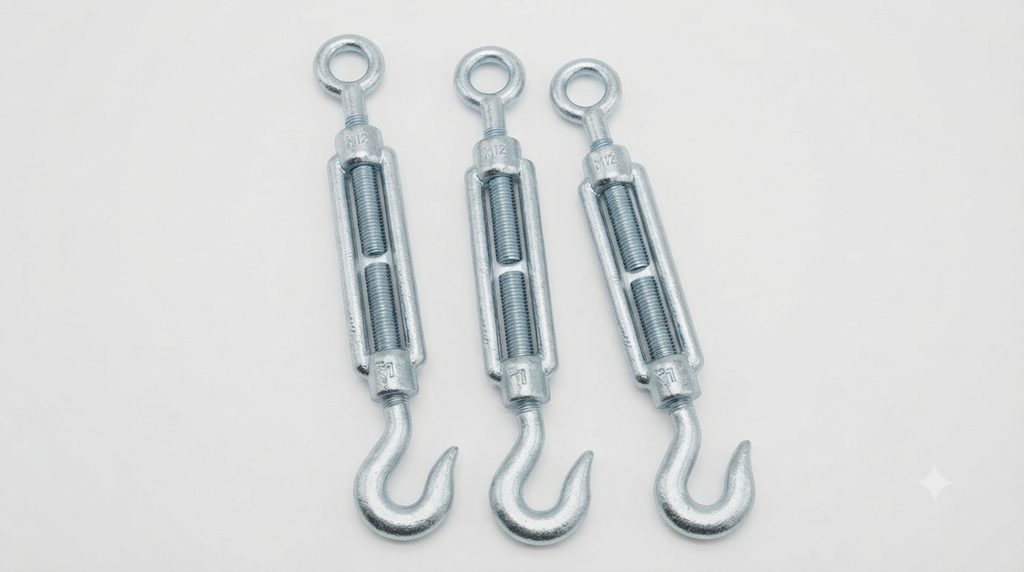

Stainless Steel Turnbuckle with Eye Hook
An SS turnbuckle with eye hook provides an eye-shaped connection point for compatible rigging components.
The eye can be connected with suitable hooks, shackles, wire rope assemblies, or other compatible hardware, depending on the design of the product.
Eye-end turnbuckles can be useful when a cable assembly needs to be connected to a fixed point while still allowing tension adjustment.
However, the eye dimensions and opening size should be checked before installation. The connecting hardware must be compatible with the turnbuckle and the wire rope system.
Buy Stainless Steel Turnbuckle Online
Looking for a reliable stainless steel turnbuckle with eye hook for wire rope tensioning? You can buy this stainless steel turnbuckle directly from our website. We offer suitable rigging hardware for industrial, commercial, construction, cable railing, outdoor, and other compatible wire rope applications.

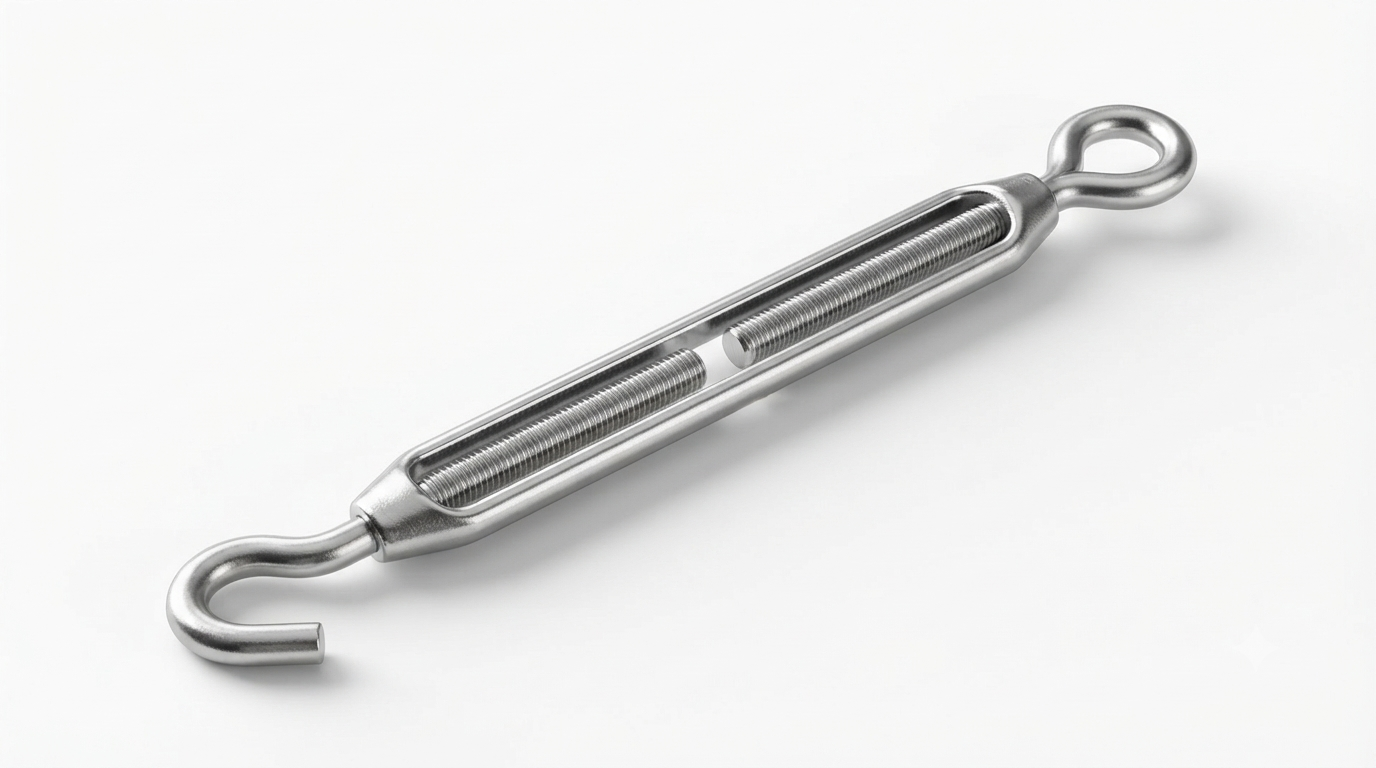

Stainless Steel Turnbuckle with Eye Hook
Our stainless steel turnbuckle is designed for compatible wire rope and cable tensioning applications. Its threaded adjustment mechanism allows the tension of a cable or wire rope assembly to be adjusted, while the eye hook provides a convenient connection point for compatible rigging hardware.
Suitable for: Industrial wire rope tensioning, cable railing systems, architectural cable applications, outdoor structures, construction projects, and general rigging applications.
Why buy from our website?
- Stainless steel construction
- Eye hook connection design
- Suitable for compatible wire rope and cable systems
- Useful for tension adjustment applications
- Available for online purchase
- Suitable for individual and bulk requirements
If you already know the required size and specifications, you can order the stainless steel turnbuckle directly from our website. Simply check the available product specifications, select the required quantity, and place your order online.
Key Features of Stainless Steel Turnbuckles
1. Stainless Steel Construction
One of the main reasons stainless steel is used for rigging hardware is its resistance to corrosion.
This makes stainless steel hardware suitable for many indoor and outdoor environments where moisture or humidity may be present.
The actual corrosion resistance depends on the stainless steel grade, surface condition, environment, and maintenance.
2. Adjustable Cable Tension
The primary function of a turnbuckle is to provide an adjustable connection.
Instead of replacing the cable or changing its length, the threaded mechanism allows the tension to be adjusted within the available adjustment range.
3. Eye Hook Connection
The eye hook configuration provides a practical connection point for compatible components.
Depending on the product design, it can be incorporated into different wire rope and cable assemblies.
4. Compact Rigging Hardware
Turnbuckles provide tension adjustment in a relatively compact mechanical component.
They can therefore be incorporated into many cable systems without requiring a large tensioning mechanism.
5. Multiple Application Options
Depending on size, material, design, and load rating, stainless steel turnbuckles may be used for industrial, construction, marine, architectural, outdoor, and general cable tensioning applications.
Applications of Stainless Steel Wire Rope Turnbuckles
A stainless steel wire rope turnbuckle can be used in many applications where cable tension needs to be adjusted.
Industrial Wire Rope Tensioning
Industrial cable systems may use wire ropes for support, bracing, positioning, or tensioning.
A turnbuckle can provide a convenient adjustment point within a compatible wire rope assembly.
For industrial applications, always check the required working load and the specifications of the complete system.
Cable Railing Systems
Stainless steel cable railing systems use horizontal cables that need to maintain appropriate tension.
Turnbuckles and other cable tensioning hardware can be used as part of these systems.
The correct cable diameter, terminal hardware, tensioner, and installation method depend on the railing design and applicable requirements.
Architectural Cable Systems
Modern architectural structures often use stainless steel cables for functional or design purposes.
These may include cable-supported structures, decorative cable installations, and tensioned architectural systems.
A suitable SS rigging screw can provide adjustment where the cable system requires controlled tension.
Marine and Outdoor Applications
Stainless steel hardware is commonly considered for outdoor and marine-related environments because exposure to moisture can create corrosion concerns.
For demanding environments, the appropriate stainless steel grade should be selected based on the application.
Construction Applications
Wire ropes and cables may be used in different construction-related support and bracing applications.
Turnbuckles can provide an adjustable connection where cable tension needs to be fine-tuned.
For structural or safety-critical applications, the product must be selected and installed according to the relevant engineering requirements.
How to Select the Right Stainless Steel Turnbuckle
Choosing the right wire rope tensioner requires more than simply matching the appearance of the product.
Several specifications should be checked before ordering.
Check the Wire Rope Diameter
First, identify the diameter of the wire rope or cable being used.
The turnbuckle and other connecting hardware should be compatible with the wire rope dimensions.
A small cable system and a heavy industrial wire rope assembly may require completely different hardware.
Check the Working Load
The working load is an important specification for rigging hardware.
Do not select a turnbuckle based only on its physical size. Check the manufacturer’s stated working load and make sure it is suitable for the intended application.
The complete cable assembly should also be evaluated because the overall system capacity can depend on its weakest component.
Check the Stainless Steel Grade
Stainless steel is available in different grades.
SS304 and SS316 are commonly encountered in stainless steel hardware, but the appropriate grade depends on the application and environmental conditions.
For applications involving significant moisture or marine exposure, material selection should receive particular attention.
Check Thread Size
Thread diameter, pitch, thread length, and thread direction should be checked before ordering.
The threaded connection must be compatible with the rest of the assembly.
Check the Eye Dimensions
If you are purchasing an eye hook turnbuckle, check the eye opening, wire diameter, overall length, and other dimensions.
The eye must be compatible with the hook, shackle, or other connecting hardware being used.
Check the Adjustment Length
Turnbuckles provide a specific amount of adjustment.
If the cable system requires substantial tension adjustment, check the available adjustment range before selecting the product.
Stainless Steel Turnbuckle vs Other Cable Tensioning Hardware
A turnbuckle is one of several components that can be used to tension a cable.
Depending on the application, other hardware may include:
- Wire rope tensioners
- Cable clamps
- Swage fittings
- Threaded cable terminals
- Cable adjusters
- Eye terminals
- Jaw terminals
- Fork terminals
A turnbuckle is particularly useful when an adjustable threaded connection is required.
The correct hardware depends on the cable construction, load requirements, installation method, connection points, environmental conditions, and applicable safety requirements.
Buy SS Rigging Screws from Amazon
For customers who prefer purchasing online, stainless steel turnbuckles and SS rigging screws can be purchased through the available online sales channels.
SS Rigging Screw with Eye Hook for Wire Rope Tensioning
Stainless steel rigging hardware designed for compatible wire rope, cable tensioning, railing, architectural, industrial, and outdoor applications. The adjustable threaded design allows tension to be fine-tuned according to the requirements of the cable assembly.
Product highlights:
- Stainless steel construction
- Eye hook connection
- Adjustable tensioning design
- Suitable for compatible wire rope and cable systems
- Useful for industrial and outdoor applications
- Multiple sizes may be available
Installation Tips for SS Rigging Screws
Correct installation is important for any cable tensioning system.
Before installation, inspect the turnbuckle for visible damage, deformation, damaged threads, or other defects.
Make sure the threaded ends are properly engaged and compatible with the connecting components.
Do not force incompatible threads together. Cross-threading can damage the component and create problems during installation.
When adjusting tension, make gradual changes rather than applying sudden or excessive force.
The turnbuckle should also remain properly aligned with the cable system. Side loading or improper alignment can place additional stress on the hardware.
For lifting, structural, or other safety-critical applications, installation should be performed by appropriately qualified personnel following the relevant engineering and safety requirements.
Maintenance of Stainless Steel Turnbuckles
Regular inspection can help identify potential problems with wire rope tensioning hardware.
During inspection, look for:
- Corrosion
- Damaged threads
- Bent components
- Cracks
- Deformation
- Loose connections
- Excessive wear
- Signs of overloading
- Improper alignment
- Damage to the connected wire rope
Outdoor installations may require more frequent inspection depending on environmental exposure and operating conditions.
A damaged rigging component should not simply be reused without appropriate evaluation.
Why Choose a Stainless Steel Wire Rope Tensioner?
A stainless steel wire rope tensioner can provide a practical solution when a cable system needs controlled adjustment.
Instead of permanently fixing the cable at one length, the threaded mechanism provides an adjustment point.
This can be useful during installation because cable tension can be fine-tuned after the wire rope has been positioned.
Stainless steel construction can also be useful where corrosion resistance is an important consideration.
However, the correct product must always be selected according to the intended use rather than simply choosing the largest or smallest available option.
Frequently Asked Questions About Stainless Steel Turnbuckles
1. What is a stainless steel turnbuckle used for?
A stainless steel turnbuckle is used to adjust and maintain tension in compatible wire ropes, cables, rods, and similar assemblies. It is commonly used in cable railing, architectural cable systems, industrial tensioning, construction, outdoor structures, and other applications.
2. What is an SS rigging screw?
An SS rigging screw is another common name for a stainless steel turnbuckle. It uses threaded components and a central body to provide adjustable tension in a compatible cable or wire rope assembly.
3. Are stainless steel turnbuckles suitable for outdoor use?
Stainless steel turnbuckles can be suitable for many outdoor applications because stainless steel offers corrosion resistance. However, the appropriate stainless steel grade should be selected according to the environment, especially for highly corrosive or marine conditions.
4. How do I choose the right turnbuckle size?
Check the wire rope diameter, required working load, thread dimensions, eye or hook dimensions, adjustment range, material grade, and application environment. The turnbuckle should be compatible with the complete wire rope assembly.
5. Can I use a turnbuckle for heavy-duty industrial applications?
Turnbuckles are available in different sizes and load capacities. Whether a particular turnbuckle is suitable for a heavy-duty application depends on its specifications and the requirements of the complete system. Always verify the manufacturer’s working load and application recommendations before use.
Order Stainless Steel Turnbuckles for Wire Rope Tensioning
A stainless steel turnbuckle with eye hook is a useful adjustable component for compatible wire rope and cable assemblies. Its threaded design allows tension to be adjusted, while stainless steel construction can provide useful corrosion resistance for many applications.
Whether you are working on industrial wire rope tensioning, cable railing, architectural cable systems, marine-related installations, construction projects, outdoor structures, or general rigging applications, selecting the correct turnbuckle specification is important.
Before placing your order, check the stainless steel grade, wire rope compatibility, thread size, eye dimensions, adjustment range, working load, and intended application.
If you already know the required size and specifications, you can purchase the suitable SS turnbuckle or rigging screw online and add it to your wire rope assembly according to the manufacturer’s installation recommendations.Need stainless steel turnbuckles in bulk? Contact the supplier for product specifications, available sizes, quantity requirements, and commercial/B2B orders.
